Application
High power density design with universal AC input range, high reliability, high efficiency and meet EN61000-3-2 requirements. Output wattage ranged from 20W~300W, channels ranged from single to quad and new models are developing continually. For reducing environmental impact, all models are compliant to RoHS regulations.
Features
High power density
Universal input range
Convection cooled
RoHS compliance
3 - year warranty
Great reliability
Over voltage protection
Overload protection
Short circuit protection
Operating Environment
Operating temperature: -40 to 50 degrees
Operating humidity: non-condensing 5% to 95% relative humidity

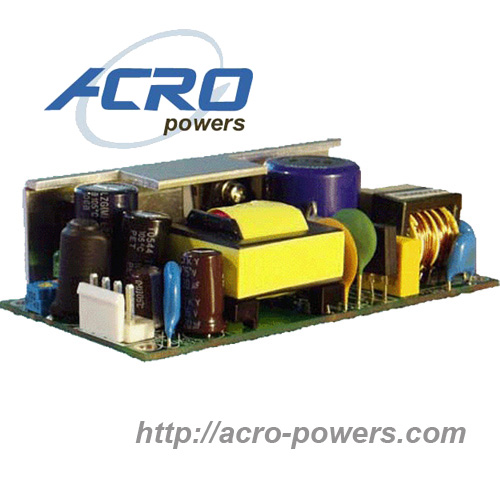

Details of Product:
| Model | O/P Voltage Adjustment | Loading | Ripple noise | Efficiency | Over Voltage Protection | ||
| Min. | Rated | Max. | |||||
| AO1060-12F | +12VDC±10% | 0A | 5.0A | 5.0A | 100mVp-p | 78% | 20VDC Max. |
| AO1060-24F | +24VDC±10% | 0A | 2.5A | 2.5A | 150mVp-p | 80% | 30VDC Max. |
| AO1060-28F | +28VDC±10% | 0A | 2.1A | 2.1A | 200mVp-p | 80% | 27VDC Max. |
| AO1060-48F | +48VDC±10% | 0A | 1.2A | 1.2A | 250mVp-p | 80% | 60VDC Max. |
