Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution of the power chassis, it saves a lot of space and be more convenient to make wiring distribution. This product is suitable for automatic control systems, factory automation, industrial control, instrumentation equipment, electromagnetic actuators and other DC motor load and according to the latest requirements and standards designed.
Features
Innovative design of industrial-grade power supply rail
High voltage protection
Current overload protection
Short circuit protection
Din rail / retainer lock with fixed protection
Selective warning signals (dry contact) / redundancy
High power density
High reliability
Small size, high efficiency, low cost
Comply with RoHS / UL / CE Standard
3-year quality warranty
Operating temperature: -40 to 40 degrees
Operating humidity: non-condensing 5% to 95% relative humidity
Model
O/P voltage Adjustment
Loading (A)
Ripple Noise
Reg.
Eff.
O.V.P.

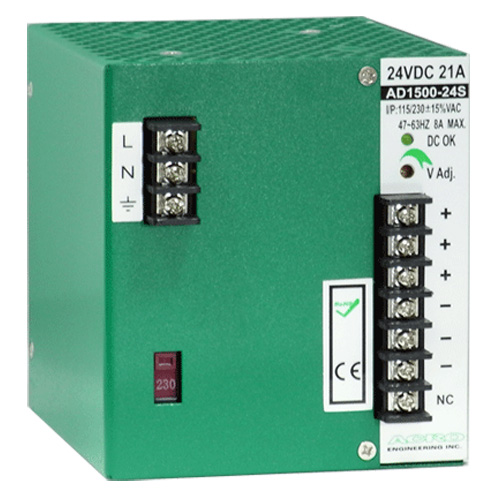

AD1500-24S
+24VDC±10%
Min.:0A
Rated:21A
Max.:21A150mVp-p
LineReg.:±1%
Load Reg.:±2%84%
30VDC Max.
AD1500-48S
+48VDC±10%
Min.:0A
Rated:10.5A
Max.:10.5250mVp-p
LineReg.:±1%
Load Reg.:±2%85%
56VDC Max.
