Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution of the power chassis, it saves a lot of space and be more convenient to make wiring distribution. This product is suitable for automatic control systems, factory automation, industrial control, instrumentation equipment, electromagnetic actuators and other DC motor load and according to the latest requirements and standards designed.
Features
High power density
Convection cooled
RoHS compliance
3 - year warranty
Great reliability
DIN rail / Wall bracket mounting solution
Over voltage protection
Overload protection
Short circuit protection
Operating Environment
Operating temperature: -40 to 50 degrees
Operating humidity: non-condensing 5% to 95% relative humidity
Details of Product:
| Model | O/P Voltage Adjustment | Loading | Ripple Noise | Efficiency | Over Voltage Protection | ||
| Min. | Rated | Max. | |||||

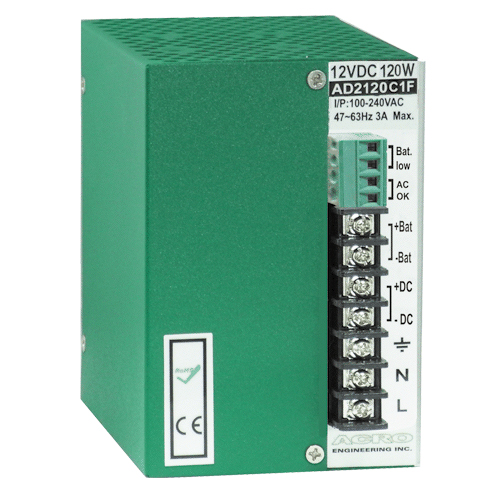

| AD2120C1F | 13.8VDC±10% 13.8VDC ------ |
0A | 7.5A 1.5A |
7.5A 1.5A |
100mVp-p 100mVp-p |
84% | 15~17VDC -------- |
| AD2120C2F | 27.6VDC±10% 27.6VDC ------ |
0A | 4.0A 0.5A |
4.0A 0.5A |
150mVp-p 150mVp-p |
87% | 27~30VDC -------- |
